Product Description

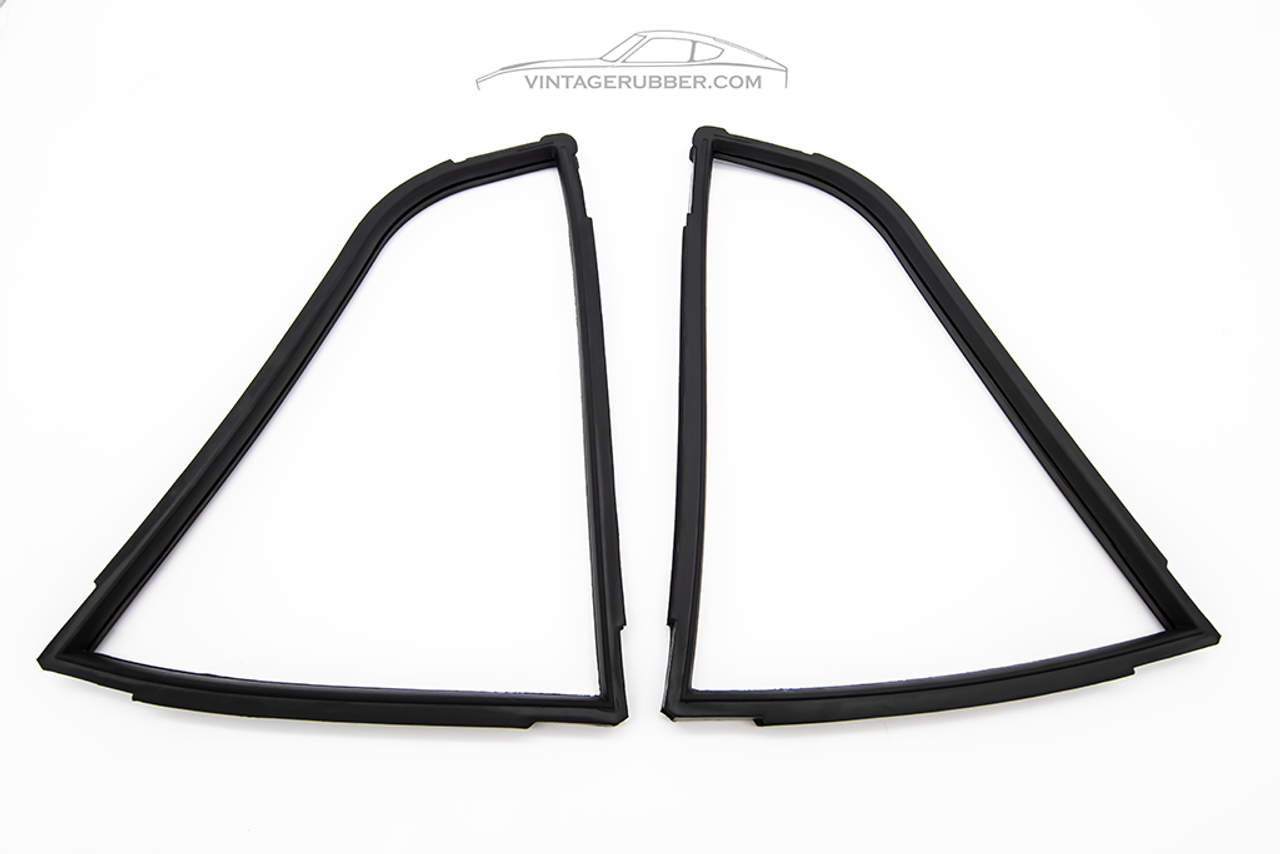

1970-1978 Datsun 240Z 260Z 280Z Inner Rear Quarter Glass Seal Pair
Replacement inner rear quarter glass weatherstrip pair for 2-seat Datsun 240Z, 260Z, and 280Z models. This kit includes both the LH driver-side and RH passenger-side inner quarter window seals required to complete one vehicle.

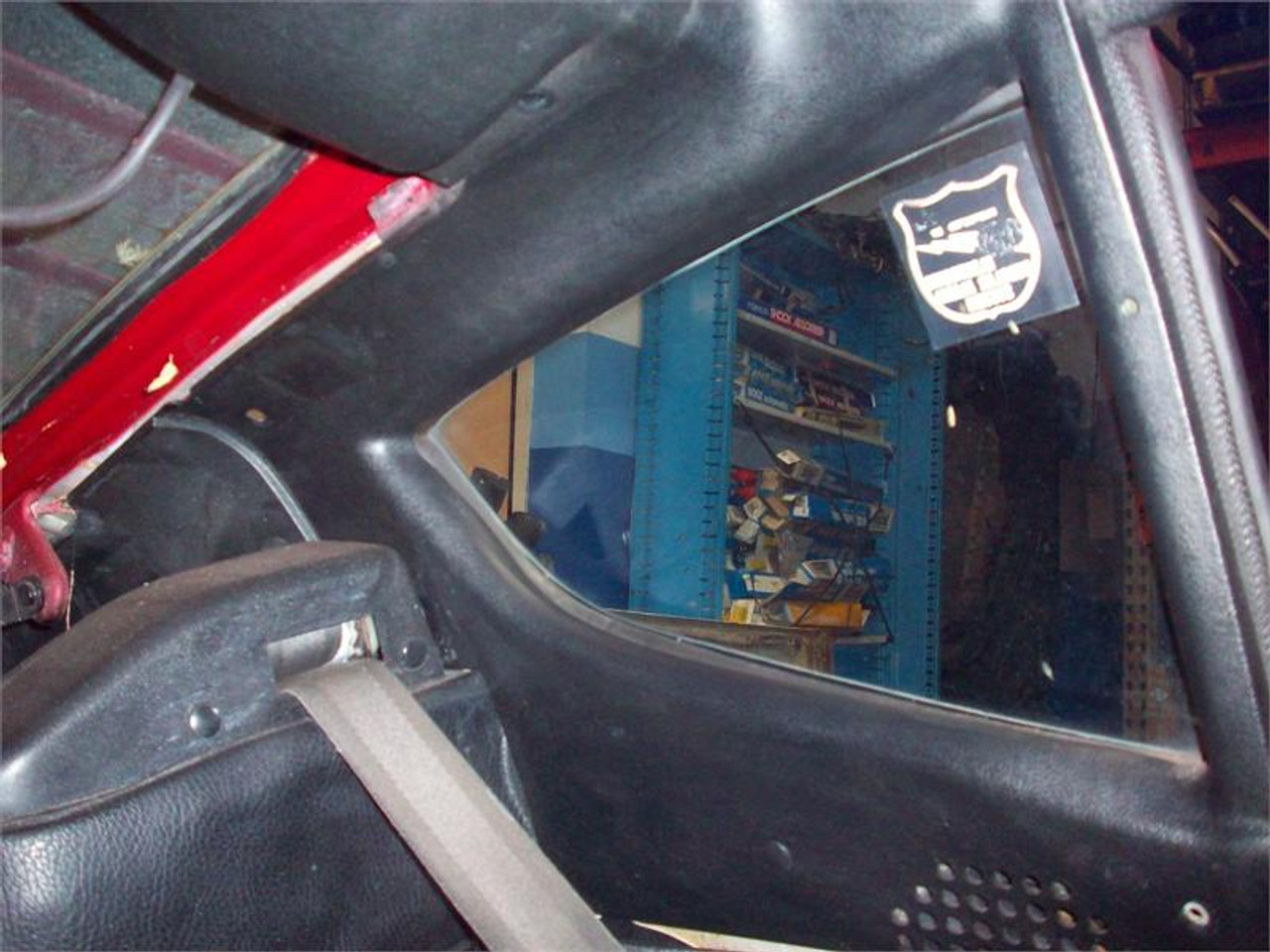

These seals install between the fixed rear quarter glass and its surrounding frame, forming the inner portion of the quarter-window sealing system. They work together with the separate outer quarter glass seals to properly retain and weather-seal the fixed quarter windows located behind the doors.
Original S30 quarter-window seals commonly become hardened, cracked, shrunken, brittle, or deteriorated after decades of exposure. Failed seals can contribute to water intrusion, wind noise, drafts, and deterioration around the quarter glass and surrounding body structure.
Replacing both inner seals restores the sealing surfaces around the fixed rear quarter windows and is recommended whenever the quarter glass is removed during restoration or body and paint work.
Features:
-
Replacement inner rear quarter glass weatherstrip pair
-
Fits 2-seat Datsun 240Z, 260Z, and 280Z models
-
Includes LH driver-side and RH passenger-side seals
-
Installs between the fixed rear quarter glass and surrounding frame
-
Completes the inner portion of the quarter-window sealing system
-
Works with the separate outer quarter glass weatherstrips
-
Molded replacement seals
-
Replaces hardened, cracked, shrunken, brittle, leaking, or deteriorated original seals
-
One pair completes both rear quarter windows
-
Two pieces included
OEM / OE Reference Numbers:
-
76836-E8200 — Inner Quarter Glass Weatherstrip
-
76836-E4100 — Earlier OE Number, Superseded by 76836-E8200
Fitment:
-
1970-1973 Datsun 240Z — 2-Seater
-
1974-1978 Datsun 260Z — 2-Seater, including applicable international/export-market models
-
1975-1978 Datsun 280Z — 2-Seater
Important: These are the INNER rear quarter glass seals for the fixed quarter windows located behind the doors.
They should not be confused with the separate outer quarter glass seals. The complete quarter-window sealing system uses both inner and outer sealing components.
The matching outer quarter glass seals are available separately.
This pair is intended for 2-seat S30 models. It does NOT fit the longer-wheelbase 260Z or 280Z 2+2 quarter windows.
Quantity: 2 Pieces — 1 LH Inner Quarter Glass Seal + 1 RH Inner Quarter Glass Seal
